HIKVISION DS-K1S701 2WIRE INTERCOM

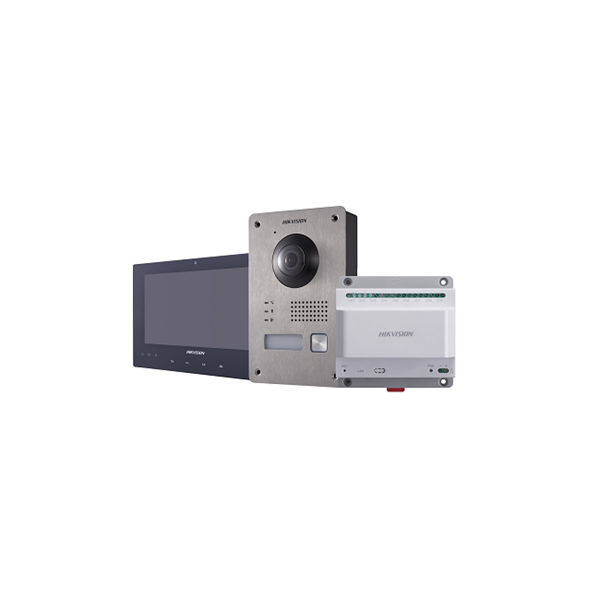

DS-KIS701 2 Wire Intercom KIT

Includes 1 x 1080P two-wire door station, One-touch call White indoor station and DS-KAD709 Power Module.

The two-wire door station includes a fisheye camera, low illumination, IP65, Vandal-resistant Metal, IR Supplement., One-touch call indoor station, Two-wire interface, lock control, RS-485, which is powered by DS-KAD7091 x 7-Inch Colorful TFT LCD Room Station Monitor, Capacitive Touch Screen, Touch Button, Display resolution:1024x600, Two-wire interface, Wall mounting. Supports monitoring the door station and the external IP camera.

Powered by DS-KAD709 and 1 x DS-KAD709 1 RJ-45 Interface, 9 Two-Wire Interface, Reset button, Wall mounting, Power supply: 24VDC, 60W.

(206-015_HK)

System Parameters
Processor:	High-Performance Embedded SOC Processor
Display Parameters
Display Screen:	7-Inch Colorful TFT LCD
Display Resolution:	1024 × 600
Operation Method:	Capacitive Touch Screen, Touch Key
Operation interface:	Flattened UI Operation Interface
Video Parameters
Video Compression Standard:	H.264
Audio Parameters
Audio Input:	Built-in Omnidirectional Microphone + External Handset
Audio Output:	Built-in Loudspeaker
Audio Quality:	Noise Suppression and Echo Cancellation
Device Interfaces
RS-485:	1 RS-485 Half-Duplex Port
I/O Output:	1 Relay Output
General
Power Consumption:	≤10 W
Working Temperature:	-10° C to + 55° C (14° F to 131° F)
Working Humidity:	10% to 90%
