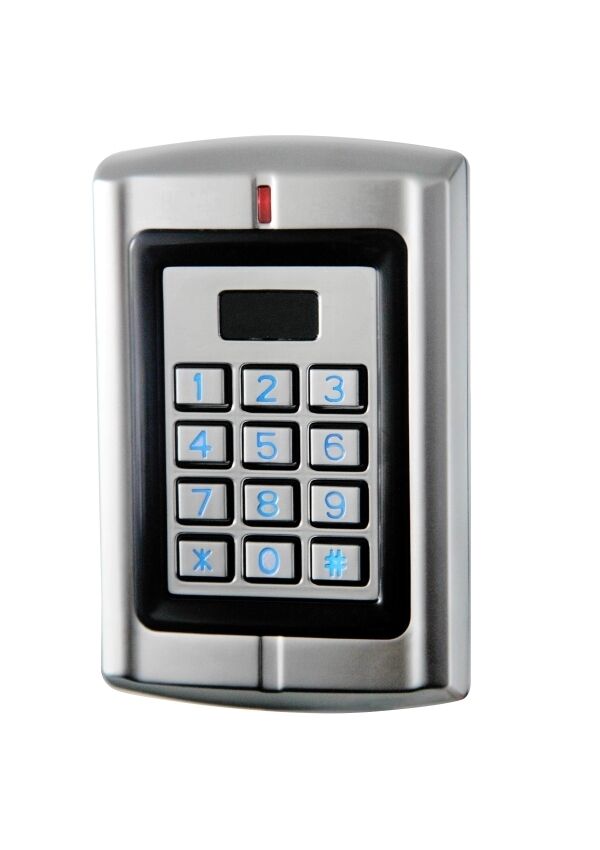

W4 Multi-function access control keypad, backlilt numbers for easy night time PIN entry or Card entry options, This keypad is suited to coast regions with its IP65 weather proof rating.
(302-001)
Metal shell, anti-vandal, safe, waterproof design. Two-relay operation Pulse mode , toggle mode 2,100 users + 10 group duress PIN/Card (Zone 1:2,000 + Zone 2:100). Support 3 Modes Access: Card, PIN, Card+PIN. Card Type: 125KHz EM & HID card, PIN length: 4-8 digits. Very Low Power Consumption ( ‰ä_35mA), long service life and stable performance. Application in High-Security Places: warehouses, banks, prisons, etc. High speed search: filled with 2,000 users, the search time< 0.1 seconds Backlight keypad. With manager cards for adding or deleting card user easily. Wiegand 26•__37 bit input & output, can be programmed. Support door bell connection(Zone 2) Protective Properties: IP65 fully-potted. With anti-demolition alarm function, anti-static interference 12KV. Operating Temperature: -40 - 60 deg C Product Certification: CE
Operating Voltage: 12•__18V AC / 12•__24V DC Card Type: 125KHz EM&HID Adjustable Door Relay Time: 1•__99s Static Current: ‰ä_35mA Wiegand Interface: Wiegand 26•__37 bit Card Read Rang: 3•__6cm Reader Induction Time: ‰ä_0.1s Operating Temperature: -40‰ãÄ•__60‰ãÄ Operating Humidity: 0%•__95% Lock Output Load: 1A Alarm Output Load: 3A Antistatic: 12KV Environment: Conforms to IP65 Wiring Length: 90•__100cm Signal Light: red, green, blue, yellow LED light display Dimensions: L 128mmÌÑW82mmÌÑH28m
| SKU | 302-001 |
| Shipping Weight | 0.6500kg |
